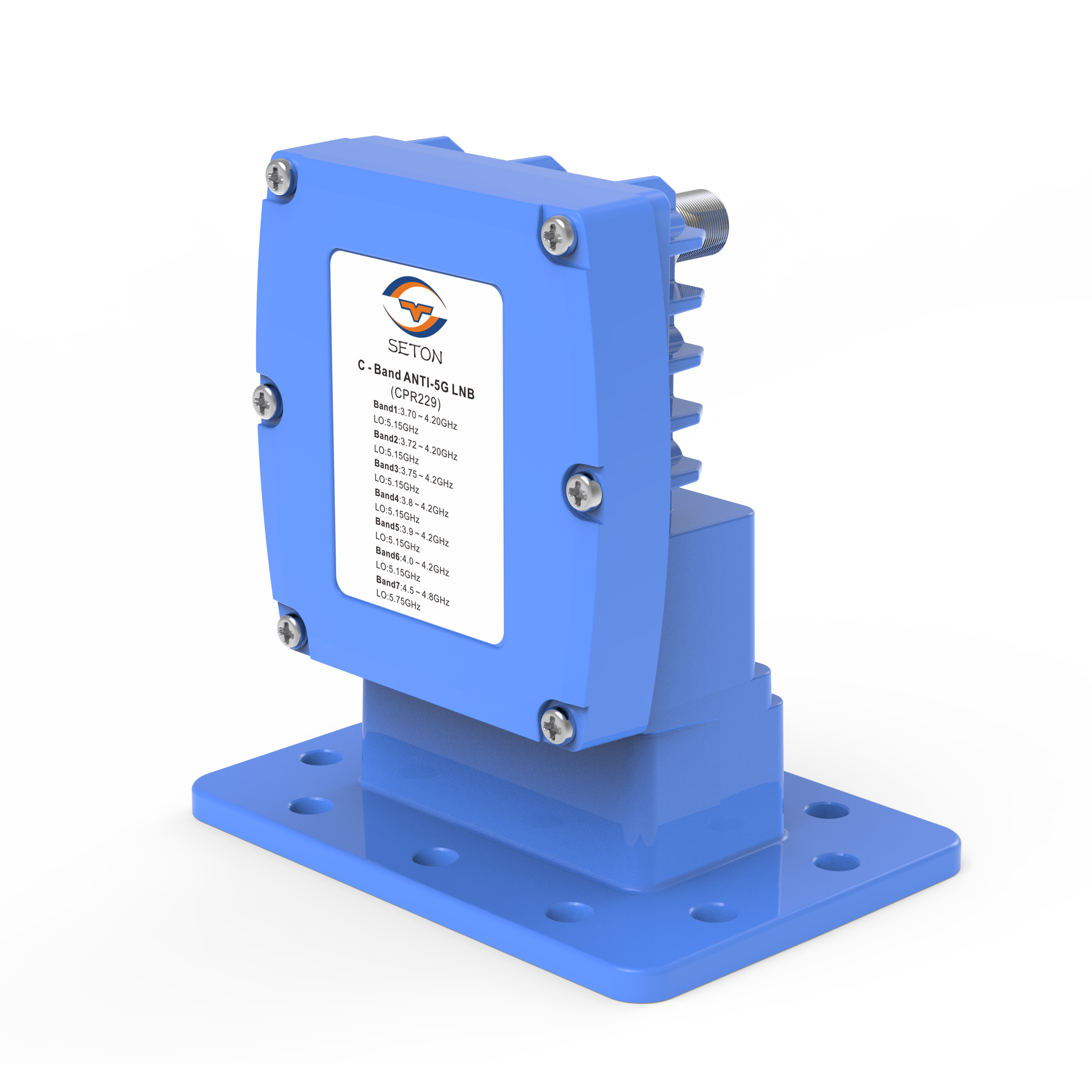

Strong Rejection-5G 3.5G IMT High Gain Low Noise WR229 LNB:
LNB: 3.7~4.2GHz (Customizable design according to difference frequency)
5G IMT: 3.3~3.6GHz
Guard band: 100MHz
LNB Input 5G Power level: -30~-20dBm@ 3.3~3.6GHz.
1. Output gain should not have lots of intermodulation when 3.3~3.6GHz interference input WR229 LNB.
2. Output gain should not be saturated when 3.3~3.6GHz interference input WR229 LNB.
Seton Strong Rejection-5G WR229 LNB Specifications
|
Input Frequency |
3700 MHz ~ 4200 MHz |
|
Output Frequency |
950 MHz ~ 1450 MHz |
|
Noise figure |
30° K (Typ.)/50° K (Max.) |
| Phase noise @ 1 KHz | -75 dBc/Hz |
|
Phase noise @ 10 KHz |
-85 dBc/Hz |
| Phase noise @ 100 KHz | -95 dBc/Hz |
|
Conversion Gain |
58 dB~68 dB/ 63dB (Typ.) |
|
Gain Flatness |
5 dBp-p (Max.) |
|
P1 dB |
+10 dBm (Min.) |
|
VSWR Input |
2.2:1 (Max.) |
| VSWR Output | 2.2:1 (Max.) |
|
Local Oscillator |
5.15GHz |
|
Local Oscillator Stability |
± 25 KHz |
|
LNB Input Rejection |
50 dBc min.(@100MHz) |
|
P1db ( LNB Input 5G Power Level ) |
-30 dBm (Max.) |
|
DC Power |
+12 VDC - + 24 VDC |
| Input Connection | WR229G |
| Output Conector | F (75 Ω) / N(50Ω） |
|
Current |
200mA (Max.) |
FREQUENCY BANDS AVAILABLE ANTI-5G LNB
|
|
3.7~4.2 |
3.72~4.2 |
3.8~4.2 |
3.9~4.2 |
4.0~4.2 |
|
L.O. Frequency(GHz) |
5.15 |
5.15 |
5.15 |
5.15 |
5.15 |
|
IF Frequency(MHz) |
950~1450 |
950~1430 |
950~1350 |
950~1250 |
950~1150 |
FAQ
Q: What is an ANTI-5G WR229 LNB?A: The transmit way by Matrix waveguide, LNB itself has anti-5G IMT @3.5G Band interference capability.
Q: What is a Strong Rejection-5G WR229 LNB?A: WR229 LNB directly input 5G IMT@3.5GHz frequency from transmitting waveguide, Guard band=100MHz, 5G Power Level: -30dBm, WR229 LNB output Gain(in-band) no intermodulation, Output Gain no saturation. WR229 LNB itself has strong anti-5G IMT@3.5GHz frequency capability, because with un-linking the mechanical filter outside, WR229 LNB built-in high performance out-band rejection passive filter.
Q: What is High Gain Low Noise?
A: WR229 LNB High Gain: 63dB (Typ.), which can receive week intensity signal; Low Noise:50°K(Max.)/ 0.8dB(Max.), which can guarantee system better C/N value.
